Manual tilt working table

Conventional table with manual tilt is a entry level working table for glass business. Tilt top are help with spring to reduce the weight. Retractable ledgebord, black carpet  5'' caster wheel are standard with this base model

​

Available table size are: 72''x96'' , 84'' x 120'' ,  96'' x 120'' , 96'' x 144''

Manual tilt working table with breaking bar

The conventional table with manual tilt is a manual braking bar help open the scoore on the glass. This table is a good way to do light production.

​​

Available table size are: 72''x96'' , 84'' x 120'' ,  96'' x 120'' , 96'' x 144''

Air Float Break-out table

Air floating glass prevent scratch and make manipulation effort less. Often use for mass production cutting line, Bromer roughness make the investment payback fast.

​

-Multiple breaking bar option availlable Y,X axis, Y,X,X axis.

-High power floating blower option also available

-Caster wheel or fix leg

-Instantatly Air float shut off option

-Heavy duty Breaking bar system to lift more weight

-Free fall frame configuration available

​

Multiple size and height available

Pneumatic Tilting Air Float Break-out table

The pneumatic tilting option is a great to prevent injury by the ease to load and unload glass from dolly. Large size or heavy glass always give a challenge when you want to work on glsss. Available with the same options as the Air float table. This is a popular choice

​

-Multiple breaking bar option availlable Y,X axis, Y,X,X axis.

-High power floating blower option also available

-Hydraulic power tilt for heavy glass and stifness when you hold table at different angle

-Caster wheel or fix leg

-Instantatly Air float shut off option

-Heavy duty Breaking bar system to lift more weight

-Free fall frame configuration available

​

Multiple size and height available

​​

Large capacity break out table, usefull for jumbo format

This table is for mass production line. Make to last almost forever, the sky is the limit what we can do. Multiple blower for more floating performace, multiple breaking bar, unload bars, heavy duty breacking bar for higher weight lift capacybility, air shut off to stabilised glass scoores on the bar, steel skirt all around to reduce noise. Premium Oak wood breaking bar, syntetic felt or natual felt for laminated glass.  Usually in two pieces for transportations

​

-Multiple breaking bar option availlable Y,X axis, Y,X,X axis.

-High power floating blower option also available

-Hydraulic power tilt for heavy glass and stifness when you hold table at different angle

-Caster wheel or fix leg

-Instantatly Air float shut off option

-Heavy duty Breaking bar system to lift more weight

-Free fall frame configuration available

​

Multiple size and height available

Donut wheel hydraulic tilt conveyor

Othen use for gantry systems or overhead crane load for large and heavy glass, the tilting conveyor is the solution. Made with strock steel frame and hydraulic power unit and motorised donut conveyor, this conveyor is the way to go. Can be automated easely with autoate and sensor, it will communicated information to the cutting line.

​

There is no limit of what we can do

​

Load and Unload penamatic bar with motorised donut conveyor

This is use in production line to load and unload material with tilt arm bar pneumatic action to minimase injury. Can be match with donut conveyor or just caster wheel.

Free fall Loading Table for cutting line and automation

The Bromer innovation, the free fall table is one of the best solution in the industries. Fast, compact, work with most of cutting table, the free fall loading table is a low cost and effective to achieve high production flow.

​

-Work for glass up to 8mm (5/16)

-Reload glass on the cutting table in a record time

-Can be paire with automatic shuttle drawer system to get access to unlimited glass type

-Work with returnable steel rack or glass pack 102 x 144 and even jumbo size 130 x 204

​

Caster table for a production line

Caster table are well appriciated for production line, it keep production in a constant flow by passing through different station and workers. Work well with combination of dual belt X-seamer and tilting table.

Present in UV laminated line, it is a part of the production line

​

Different size availlable.

Multiple center to center caster wheel spacing

Customised height

​

Pneumatic tilt action on caster table

Caster table are well appriciated for production line, it keep production in a constant flow by passing through different station and workers. Work well with combination of dual belt X-seamer and tilting table.

Dual tilting table with gripper for filling

This dual tilt table hydraulic power for more accuracy, equiped with the lower edge maintain close with gripper that hold  the pressure when the unit is filled.

​

Rotary glazing table motorised

This glazing table lift and hold unit with a suction cup and the rotating action is motorised with DC motor witch is fully speed adjustable. Retractable support arm to prevent woble. Mecanical brake hold in place the unit and avoid any slip when pressure is apply

Suction cup glass loader

In response to numerous requests, we have developed a vacuum unloading system designed for use with glass cases commonly utilized by door and window manufacturers. Its compact design and versatility reduce the space required for factory implementation.

The system can supply glass with either longitudinal or transverse transfer operations. It is ideal for use with a shuttle system for cases.

Cold roll press for Insulated Glass

The cold roller press is designed to standardize the thickness of sealed units after the initial application of polysulfide. It ensures the consistency and precision required for insertion into extrusion frames, providing a significant advantage in enhancing the performance and quality of sealed units.

Whether you are producing single, double, or triple spacer units, the cold roller press delivers incredible performance, speed, and precision. It can be manually or automatically adjusted with the optional integration of an automatic thickness reader, allowing you to process various types or thicknesses sequentially while capturing the necessary measurements.

​

Safety devices at the entry, exit, and receiving area prevent impacts between sealed units, ensuring precision and protection that minimize unit breakage. Built with robust construction using steel that meets North American standards, the press offers adjustable feed speeds ranging from 20 to 60 feet per minute.

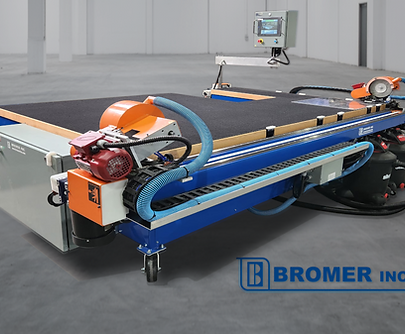

Automatic Edge deletor, edge deletion

The automatic edge deleter is designed for creating an abrasion line or applying polysulfide or silicone in the manufacturing of sealed units, also known as thermopanes. The automatic edge deleter handles the X and Y axes automatically and can be programmed to optimize operation time.

​

The automatic edge deleter heads now feature mechanical movements with axis motorization powered by electric motors for enhanced precision and ultimate adjustment. It is equipped with systems to collect glass dust and abrasion debris, minimizing contamination of the surrounding air.

Automatic returnable steel rack shuttle system

The filing system for cases equipped with an automatic vacuum loading system has been designed to meet the demand for a compact automatic feeding line for sealed unit production. Quick access to three types of cases without delay and the ability to transfer them directly onto an automatic cutting line provide a clear advantage in terms of space efficiency for the entire production line.

Automatic seaming machine

The high-capacity automatic sander is designed to operate under the toughest conditions. It is reliable and durable, specifically built to exceed industry lifespan expectations. Our X-belt sander heads are crafted with a robust and lightweight aluminum frame to ensure the longevity of linear bearings and mechanical components. Our bearing components are of superior quality, and replacement parts are readily available. The sander is specifically designed for the most widely available standard abrasive belts on the market.

The high-capacity automatic sander uses a dry sanding process. Dry sanding has significantly less harmful impact on the mechanics and durability of electrical components. It is much safer for handling energy-efficient glass, as no liquids come into contact with it.

Contaminated air is collected directly at the sanding heads. Additionally, the sander is surrounded by a negative air pressure chamber that captures and purifies the air using filters. Despite the negative air pressure chamber, the high-capacity automatic sander remains the most compact on the market.

If you plan to use the same machine for over 10 years, the Bromer high-capacity automatic sander is your solution. Multiple sizes and options

Butterfly-type automated line for inverse mirror facing side

Butterfly-type inversion table for visual inspection of mirrors on a silvering line. Automatically and quickly adjustable to different glass sizes.
